Team Associated B44.3 Build – Anti-Roll Bar

Team Associated B44.3 Buggy Build – Anti-Roll Bar
Team Associated B44.3 Buggy Build – Anti-Roll Bar

The Build – Part 8
Part 8 will be short and simple; we’re assembling and attaching our rear anti-roll bar. Three steps and then it’s back to something else; or the next build step.

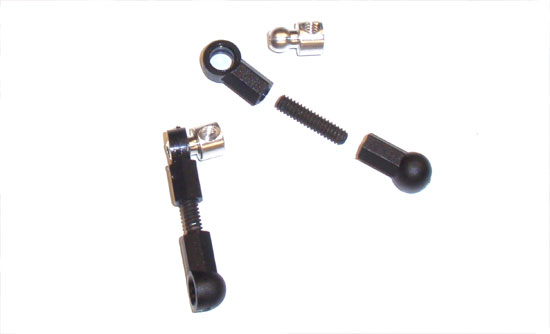

Team Associated B44.3 Buggy Build Step 98
Team Associated B44.3 Buggy Build Step 98
Build 2 anti-roll bar links, popping the pivot ball into the open ended side as shown.

Team Associated B44.3 Buggy Build Step 99
Team Associated B44.3 Buggy Build Step 99
Attach the anti-roll bar link to the suspension arm. Take your anti-roll bar and feed it into the pivot ball, securing it with the set screw. Make sure the anti-roll bar does not protrude out past the end of the ball. Attach both sides.

Team Associated B44.3 Buggy Build Step 100
Team Associated B44.3 Buggy Build Step 100
Set the anti-roll bar into the groove and secure it with the 2 2-56 screws. Do not overtigthen; you want the screws and washers to keep the anti-roll bar in place, not hinder it’s movement.

Part 9 – Assembling the shocks.
